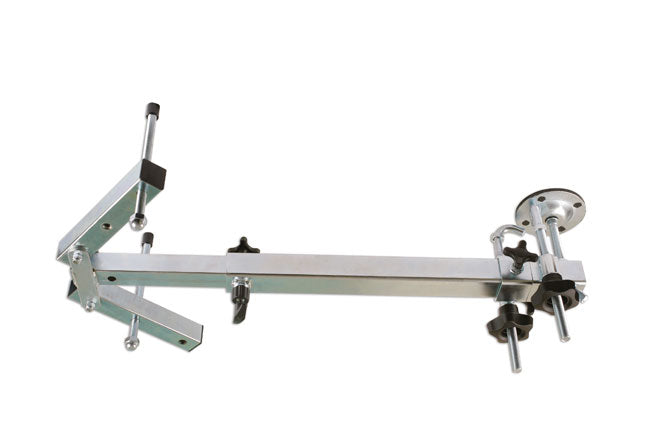

LASER 5750 Engine/Gearbox Support Frame For Transverse-Engined Vehicles

Designed for transverse-engined vehicles, the frame will support the engine and/or gearbox when carrying out repair operations like clutch or gearbox removal, DMF change, removing and replacing engine and gearbox mounts, for cam belt replacement, etc.

• With car on ramp, engine/gearbox position and height can be adjusted from underneath.
• Once support frame is secured in position, vehicle ramp can be moved up and down.
• Length of frame, position of thrust pins, mounting support hooks and main support pad is fully adjustable to suit many applications.
• Frame length: 600mm - 930mm (fully extended). Maximum width of thrust pins: 300mm (position 1), 500mm (position 2). Maximum load 400kg.

• Manufacturer: LASER TOOLS
• Quantity Per Package: 1
• Dimension a [mm]: 600
• Dimension b [mm]: 930
• Gross vehicle weight to [kg]: 400
• OEM Numbers:
