LASER 6554 Petrol Engine Timing Camshaft Alignment Kit Fits VAG 1.4 TFSI CPTA

In 2012 VAG introduced a new version of their 1.4 TFSi petrol engine. This engine is equipped with CoD technology (Cylinder on Demand) which allows the engine to switch between 2 and 4 cylinder running modes to maximise efficiency. The engine design also meant the need for new camshaft locking tools.

Technical Bulletin: It has come to our attention if component C734 is over tightened when fixed to the cylinder head, it will push the inlet camshaft inner shaft to one side resulting in a misfire and generating engine fault codes (ACT or COD error codes). To correct the fault the camshaft pulley and shaft assembly must be pushed back into their original alignment position.

• Application: VAG 1.4 TFSI petrol engines - Codes CPTA and CZEA (2012-2018).
• Audi A1/Sportback, A3 Cabrio/Saloon, A3/A3 Sportback, Q2 and Q3; Seat Ateca, Ibiza and Leon/ST; Skoda Kodiaq and Superb; Volkswagen Golf VII, Passat and Polo.

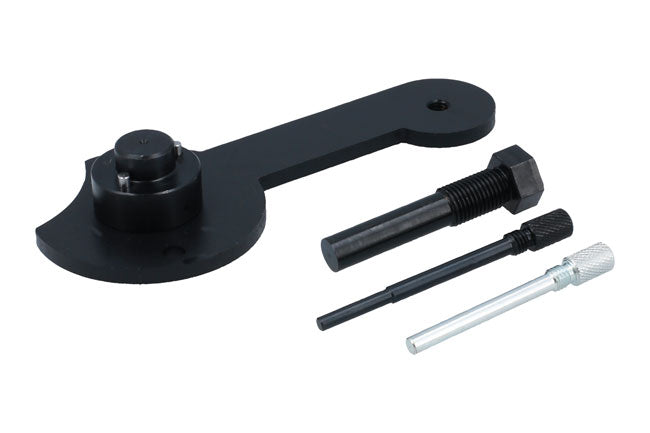

• Kit includes: Camshaft positioning tool (OEM T10504), Stepped pin - short (OEM T10504/1), long (OEM T10504/2) and Crankshaft locking pin (OEM T10340).
• Camshaft Positioning Tool - EU Registered Design. Made in Sheffield.
• Tensioner spanner (Laser Part No. 6199) is also required.

General Information

• Manufacturer: LASER TOOLS
• Quantity Per Package: 1
• for OE number: OEM T10504
• for OE number: OEM T10504/1
• for OE number: OEM T10504/2
• for OE number: OEM T10340
• Colour: black (2x)
• Material: Steel
• Number of Parts [parts]: 4
• Manufactured in: Great Britain
• Surface: Phosphatized
• Mounting/Removal: for mounting
• Mounting/Removal: for removal
• OEM Numbers: T10340--AUDI,T10504--AUDI,T10504/1--AUDI,T10504/2--AUDI,T10340--SEAT,T10504--SEAT,T10504/1--SEAT,T10504/2--SEAT,T10340--VW,T10504--VW,T10504/1--VW,T10504/2--VW
