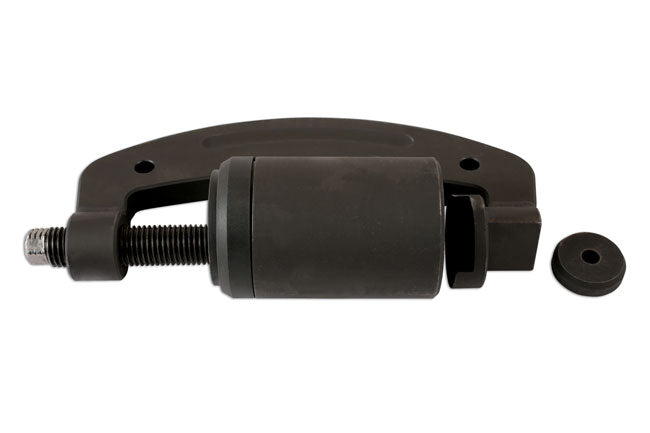

LASER 6614 Ball Joint Removal Installation Tool For Ford Transit Custom '12-'14

Part of a range of vehicle specific tools, for the removal and fitting of bushes and ball joints, without having to remove suspension legs, subframes, wishbones and trailing arms etc from the vehicle. Designed to be used in-situ, although many of these tools can also be used in a workshop press if circumstances require.

• Applications include: Ford Transit (2000 - 2014), Transit Custom (from 2012), Transit (from 2012); all RWD and FWD (not 4x4 or HD suspension).
• Equivalent to OEM 204-288A (with extended applications).
• Maximum recommended torque on force screw 120Nm (equates to 4 to 4.5 tonnes of force to easily remove ball joint).
• Use with Ratchet Ring Spanner - Flexi Head 19mm.
• Do not use with air tools. Made in Sheffield.

General Information

• Manufacturer: LASER TOOLS
• Quantity Per Package: 1
• for OE number: OEM ref 204-288A
• Mounting/Removal: for mounting
• Mounting/Removal: for removal
• Number of Parts [parts]: 7
• OEM Numbers: 204-288A--FORD
