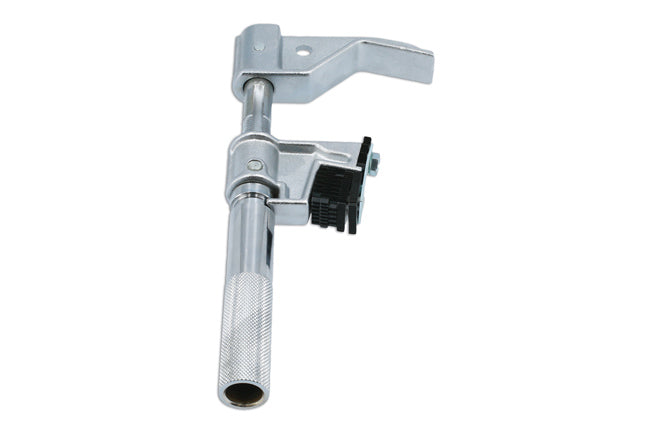

LASER 7798 Universal Outside Thread Chaser Tool Steel For Shaft Threads

Universal outside thread chaser to be used on shaft parts with external threads from 1.25" up to 5" outside diameter. Suitable for RH and LH threads.

• Quickly restores external threads without the need for cutting, saving both time & money. Overall capacity 31.75mm - 127mm (1.25 inch - 5 inch).
• Includes 6 interchangeable pads for 24 different thread pitches, covering both metric & imperial. Suitable for RH & LH threads.
• Metric pitches: 1, 1.25, 1.5, 1.75, 2, 2.5, 3 & 3.5. Threads per inch: 4, 5, 6, 7, 7.5, 8, 9, 10, 11, 11.5, 12, 14, 16, 18, 20 & 24.
• Length: 237mm.
• Manufactured from zinc alloy with cabon steel pads & a steel handle. Replaceable V pad & dies available.

General Information

• Manufacturer: LASER TOOLS
• Quantity Per Package: 1
• Material: Steel
• Diameter from [mm]: 31.7
• Diameter up to [mm]: 127
• OEM Numbers:
