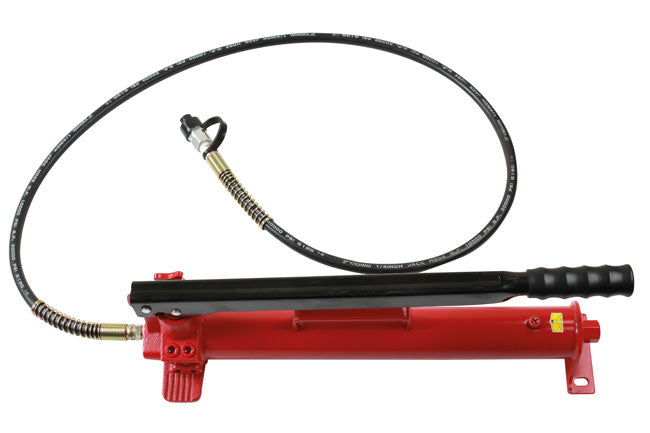

LASER 7861 Two-Speed Hydraulic Hand Pump 700cc Steel Body 700 Bar Pressure

Manually operated pump delivers up to 700 bar (10,000psi) pressure. Can be used in either vertical or horizontal positions. Designed to be used with hydraulic rams used for bodywork, bush and bearing presses.

• Durable steel bodied design (530 x 135 x 155mm), with simple to use hand pump. Hose length: 1.8m, fitted with 3/8" NPT hydraulic couplings.
• Internal relief valve automatically releases pressure when maximum is exceeded.
• Two speed auto-switch reduces manpower and increases efficiency. 1st stage: 14 bar; 2nd stage: 700 bar.
• Usable oil capacity: 700cc. Always bleed the pump before use. For air powered pump please see 7862.
• Ideal for use with HGV Spring Suspension Bush Tool - please see Laser Part No. 7432.

General Information

• Manufacturer: LASER TOOLS
• Quantity Per Package: 1
• Material: Steel
• Colour: red (2x)
• Pump Type: Mono Pump
• Pressure [psi] to: 10
• Working pressure to [bar]: 700
• Hose Length [mm]: 1.8
• Length 1 [mm]: 530
• Width [mm]: 135
• Height [mm]: 155
• OEM Numbers:
