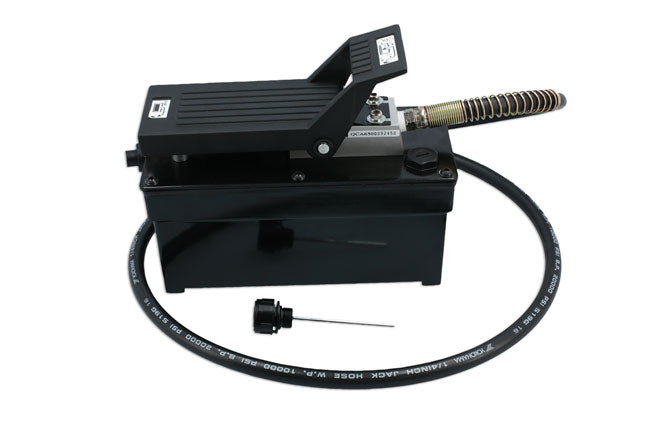

LASER 7862 Air Powered Hydraulic Pump 700 bar Steel Body Foot Pedal Operation

Foot operated air powered hydraulic pump connects to workshop airline and delivers up to 700 bar (10,000psi) pressure. Applications include powering hydraulic rams and cylinders used for body work, bush, bearing removal and fitting.

• Durable, compact design (242 x 127 x 204mm), with pedal control. Hose length: 1.8m, fitted with 3/8"NPT hydraulic couplings.
• Internal relief valve automatically releases pressure when maximum is exceeded.
• Output flow rate (no load): 0 bar: 1.3L/min; 700 bar: 0.24L/min. Air pressure range: 7-11kg/cm². Airline connector 1/4"BSP
• Usable oil capacity: 1500cc. Includes oil level gauge to monitor oil level; for hand pump unit see Laser 7861.
• Ideal for use with HGV Spring Suspension Bush Tool - please see Laser Part No. 7432.

General Information

• Manufacturer: LASER TOOLS
• Quantity Per Package: 1
• Material: Steel
• Colour: black
• Pressure [psi] to: 10
• Working pressure to [bar]: 700
• Length 1 [mm]: 242
• Height [mm]: 204
• Width [mm]: 127
• Hose Length [mm]: 1.8
• Gauge: with dial gauge
• OEM Numbers:
