LASER 8075 Diesel Injection Pump Gear Puller Steel Locking Tool For Nissan

The high pressure diesel pump on the Nissan 2.2 and 2.5L diesel engines is driven off the camshaft drive chain. To remove the pump without disturbing the timing chain the fuel pump sprocket must be locked in position. The Laser 8075 is designed to lock the sprocket and allow the pump to be removed while maintaining the tension on the timing chains.

• Nissan applications include: Almera (2000 - 2006), Cabstar (2006 - 2014), Murano (2010 - 2015), Navara (2002 - 2016), NP 300 (2008 - 2013), NT 400 (2014 - 2016), Pathfinder (2004 - 2016), Primera (2002 - 2006) and X-Trail (2001 - 2007).
• Engine Code applications include: YD25DDT (2.5Di, 2.5DDCi) YD22DDTi and YD22DDT (2.2 turbo diesel).
• Equivalent to OEM KV11106060 and KV11106030.

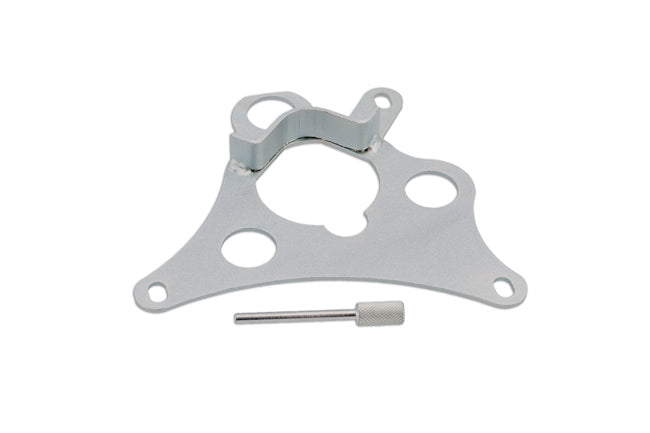

• Includes sprocket holding tool and pump setting pin.
• Use in accordance with vehicle manufacturer instructions.

General Information

• Manufacturer: LASER TOOLS
• Quantity Per Package: 1
• Fuel Type: Diesel
• Mounting/Removal: for removal
• Colour: chrome
• Material: Steel
• Surface: Galvanized
• OEM Numbers: KV11106030--NISSAN,KV11106060--NISSAN
