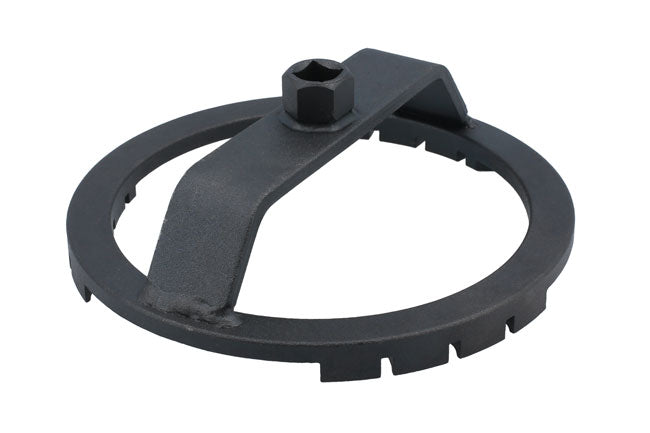

LASER 8245 Fuel Sender Unit/Fuel Pump Mounting Kit 21mm Spanner Size Steel

Designed to fit the plastic threaded locking ring that holds the fuel sender unit in the fuel tank on Toyota and Lexus models. Plastic fuel sender rings can be tight and brittle, so the Laser 8245 has been designed to allow for the removal of the ring without risk of damage.

• Toyota applications: Corolla, Land Cruiser, Matrix, Yaris, Prius Hybrid, Vios.
• Lexus applications: RX330, RX350, RX450H.
• Designed to fit OEM locking rings: Toyota 77144-04010 & 77144-52040; Lexus 77144- 48020.
• Use with a 21mm spanner or 1/2”D socketry.
• Dimensions: external diameter 174mm; internal diameter: 143mm.

General Information

• Manufacturer: LASER TOOLS
• Quantity Per Package: 1
• Material: Steel
• Square Drive Tang Size [mm (inch)]: 12.5 (1/2")
• Colour: black
• Surface: Phosphatized
• for OE number: 77144-04010
• for OE number: 77144-52040
• for OE number: 77144-48020
• Spanner Size: 21mm
• Outer Diameter [mm]: 174
• Inner Diameter [mm]: 143
• OEM Numbers:
