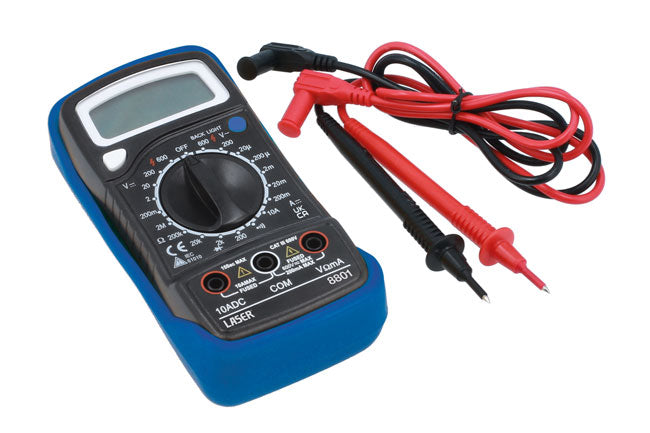

LASER 8801 Digital Multimeter 600V CAT III With Data Hold And Backlight

This CAT III multi-meter is for measuring both DC and AC voltages, DC current, resistance, diodes and continuity. It features an easy to read digital display with backlight together with a data hold function, continuity buzzer and low battery indicator. Suitable for voltages up to 600V, it’s ideal for testing wiring and circuitry in the workshop and at home. The meter has a compact size and is supplied with a PVC cover, with an integral flip down stand for ease of use, together with a pair of test leads.

• Features: Data hold function, diode test, continuity buzzer, low battery indicator, overload protection, backlight & double fuse design (250mA/600V + 10A/600V).
• Size: 31 x 69 x 138mm. Weight: 170g (approx).
• DC voltage: Range; 200mV, 2V, 20V, 200V & 600V. Accuracy; ±0.5% ~ ± 0.5%. AC voltage: Range; 200V & 600V. Accuracy; ±1.2%.
• DC Current: 20µA, 200µA, 2mA, 20mA, 200mA & 10A. Accuracy; ±1.0% ~ ± 3.0%. Resistance: 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ. Accuracy; ±0.8% ~ ± 1.0%.
• Supplied with test leads, PVC cover, manual & 9V battery. CE, UKCA & RoHS compliant. CAT III.

General Information

• Manufacturer: LASER TOOLS
• Quantity Per Package: 1
• Measurement Category (CAT): CAT III (600V)
• Length 1 [mm]: 138
• DC voltage to [V]: 600
• Width 1 [mm]: 69
• Height 1 [mm]: 31
• OEM Numbers:
