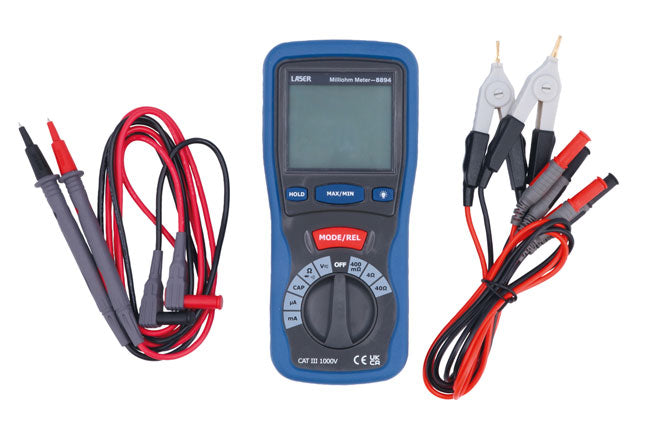

LASER 8894 Low Resistance Milliohm Meter With 4-Wire Kelvin Voltage Current

A digital low resistance tester designed specifically to measure very low resistances. Ideal for testing and checking resistance in high voltage circuits where even a small resistance issue can cause fault codes and component failures. A must have for technicians working to diagnose motor winding and cabling resistance issues where the resistance measured are much lower than a standard multimeter can show. Uses well established industry standard 4 wire “Kelvin” leads combined with volts and amps measurement to give a very accurate reading of the resistance. The Laser 8894 also offer voltage measurement up to 1000v DC or 750v AC, amperage up to 400mA and capacitance to 40mF.

• Ohm’s reading: High resolution to 0.1 mΩ, Low resistance ranges 400mΩ, 4Ω & 40Ω.
• Voltage up to 1000v DC & 750v AC, current to 400mA, Capacitance 40mF.
• Overload protected with recording modes & auto shut off.
• 4 wire “Kelvin” harness included. 4000 counts, 3.5” digital LCD display.
• Ideal for working with Hybrid & battery electric vehicles. CE & RoHS compliant. CAT III.

General Information

• Manufacturer: LASER TOOLS
• Screen Display: LCD
• Measurement Category (CAT): CAT III (600V)
• DC voltage to [V]: 1,000
• Measuring Range (AC) [V]: 750
• Colour: Blue/black
• OEM Numbers:
