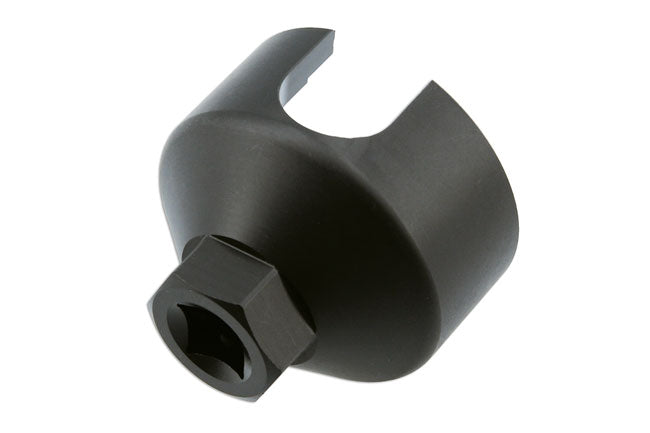

LASER 9090 Fork Cap Socket 49mm For BMW DDC forks With electronic control

Specially designed to fit the fork caps found on the DDC forks fitted with electronic control. The socket is designed to fit on 7 of the 8 flats on the fork cap. Equipped with a 21mm wiring slot to allow the socket to fit snugly over the fork control wiring harness.

• Applications include: BMW S1000RR DDC fork cap (8 flats type).
• Width across flats = 49mm, 21mm wiring loom slot.
• Machined from POM (Acetal) engineering plastic for strength with non-marring properties.
• Use with 1/2"D socketry or 27mm ring spanner. Not suitable for impact use.
• NOTE: Always loosen the top yoke (triple trees) fork tube clamps before attempting to loosen the cap.

General Information

• Manufacturer: LASER TOOLS
• Quantity Per Package: 1
• Material: POM (Polyoxymethylene)
• Colour: black (2x)
• Surface: Uncoated
• Spanner Size: 49
• Square Drive Tang Size [mm (inch)]: 12.5 (1/2")
• Spanner Size actuating hex [mm]: 27
• Wrench Profile: Octagon
• OEM Numbers:
