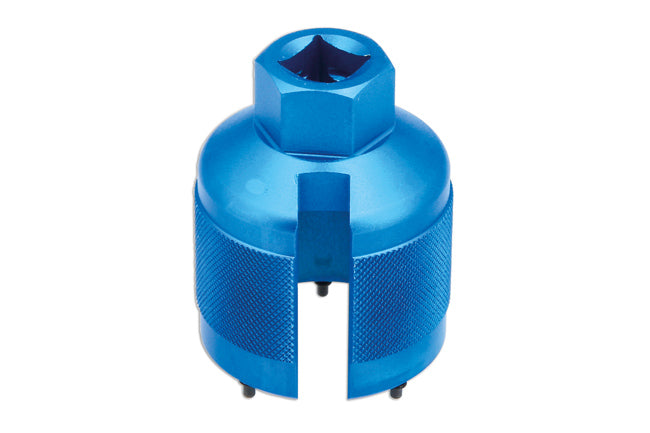

LASER 9091 Fork Cap Socket For Ohlins NPX 43 forks With Smart Electronic Control

Specially designed to fit the fork caps found on the Öhlins NPX 43 forks fitted with Smart Electronic Control (S-EC). The socket has seven pin configuration with a 10mm wiring slot to allow the socket to fit snugly over the fork control wiring harness. The fork cap has 8 holes however only 7 can be used to allow for the harness slot.

• Applications include: Honda CBR 1000RR-R SP (from 2022), Triumph Speed Triple 1200 RR (from 2022).
• 7 x 2.3mm pins, 42mm PCD, 10mm sensor wiring slot.
• Aluminium body with steel pins protected by rubber base rings.
• Use with 1/2"D socketry or 24mm ring spanner. Not suitable for impact use.
• NOTE: Always loosen the top yoke (triple trees) fork tube clamps before attempting to loosen the cap.

General Information

• Manufacturer: LASER TOOLS
• Quantity Per Package: 1
• Material: Aluminium
• Colour: golden
• Surface: Anodized
• Number of pins: 7
• Square Drive Tang Size [mm (inch)]: 12.5 (1/2")
• Spanner Size actuating hex [mm]: 24
• OEM Numbers: T3880346--TRIUMPH
