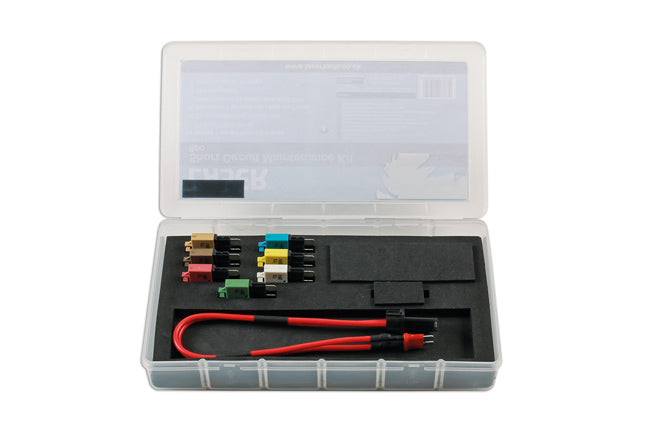

LASER TOOLS 7387 Short Circuit Diagnostic Kit Blade Fuse Tester 8 Pieces

Tracing a short circuit can be a very time consuming exercise. This Short Circuit Diagnostic Kit provides a solution in the form of a set of circuit breaker fuses, designed to fit in place of the traditional fuse. The circuit breaker will safely break the circuit when an overload is detected, just like a conventional fuse, but it is also manually resettable, allowing the technician to reset the circuit breaker fuse to run their tests as many times as they need.

• Contents includes: 7 manually resettable circuit breaker standard blade fuses & 300mm extension loop lead.
• Fuse ranges: 5A, 7.5A, 10A, 15A, 20A, 25A, 30A.
• Supplied with 300mm (12”) extension loop lead for better access.
• Manufactured to: SAE J553 (TYPE I & II & III) Circuit Breakers.
• Ideal for use with Laser Part No. 6551 - Digital Amps Clamp. For resettable mini fuses, please see Laser Part No. 7386.
