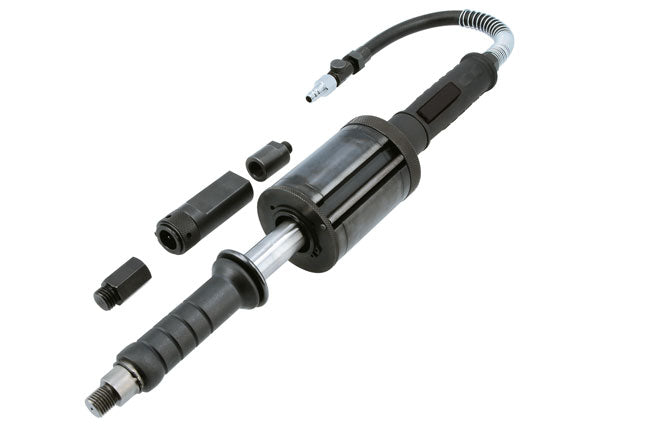

LASER TOOLS 9210 Bi-Directional Air Slide Hammer M18 Thread With Adaptors

The Laser 9210 is a workshop air powered slide hammer, that uses standard workshop air to extract (pull) or insert (push) by automatically forcing the hammer weight in one direction or the other. Uses air hammer technology but set around a central shaft. In a standard slide hammer, the force that drives the impact is generated purely by the momentum of the sliding weight as it slams into the impact surface. This sudden stop translates a significant shock directly through the handle and the weight into the user's hands and arms. Over time, or with frequent use, this repetitive impact can lead to discomfort, fatigue, and even injuries like vibration white finger or carpal tunnel syndrome. The use of an air powered slide hammer significantly reduces this issue.

• Main tool thread M18 x 2.0mm. Also supplied with 2x thread adaptors (M14 x 1.5mm & 5/8" UNF) & air chisel adaptor.
• BPM: Pulling: 1,300, equal to 4,000kg of force; Hammer: 1,300, equal to 4,000kg of force.
• Noise level: 98dB. Air consumption: 36CFM (approx.). Working pressure: 120PSI.
• Air inlet: 1/4" BSP (use with minimum hose size 3/8"). Recommended air inlet pressure: 120PSI.
• Weight: 4.9Kg. Length: 516mm.

General Information

• Manufacturer: LASER TOOLS
• Quantity per packing unit:
• Hammer head weight [g]: 4,900
• Colour: black
• Material: Steel
• External Thread 1 [mm]: 18
• for thread size: 5/8
• Interchange Part Numbers: SR9574--BGA, 32-B28-0--BOGE, BBS6475--BORG & BECK, 0 986 494 344--BOSCH, BP1252, 90R-011078/1371--E1, 24483, 8213-D1348, WC1915BE--Brake ENGINEERING, 815.541.215.010--BV PSH, 0.125.812.075+, A135.080, 815.541.215.280--BV PSH, 0125812075, 0125.812.075, A147.886, 815.541.215.340--BV PSH, 0.125.812.076-R+SEL, 815.541.215.346--BV PSH, 0.125.812.076-R+PRO, DBS10341--DANAHER
• OEM Numbers:
