Sealey Diesel Engine Setting/Locking Tool Set Fits PSA Ford Volvo VSE5846

Sealey Diesel Engine Setting/Locking Tool Set Fits PSA Ford Volvo VSE5846

£18.70 GBP
£18.70 GBP (£15.58 excl. tax)
    Model Number: VSE5846

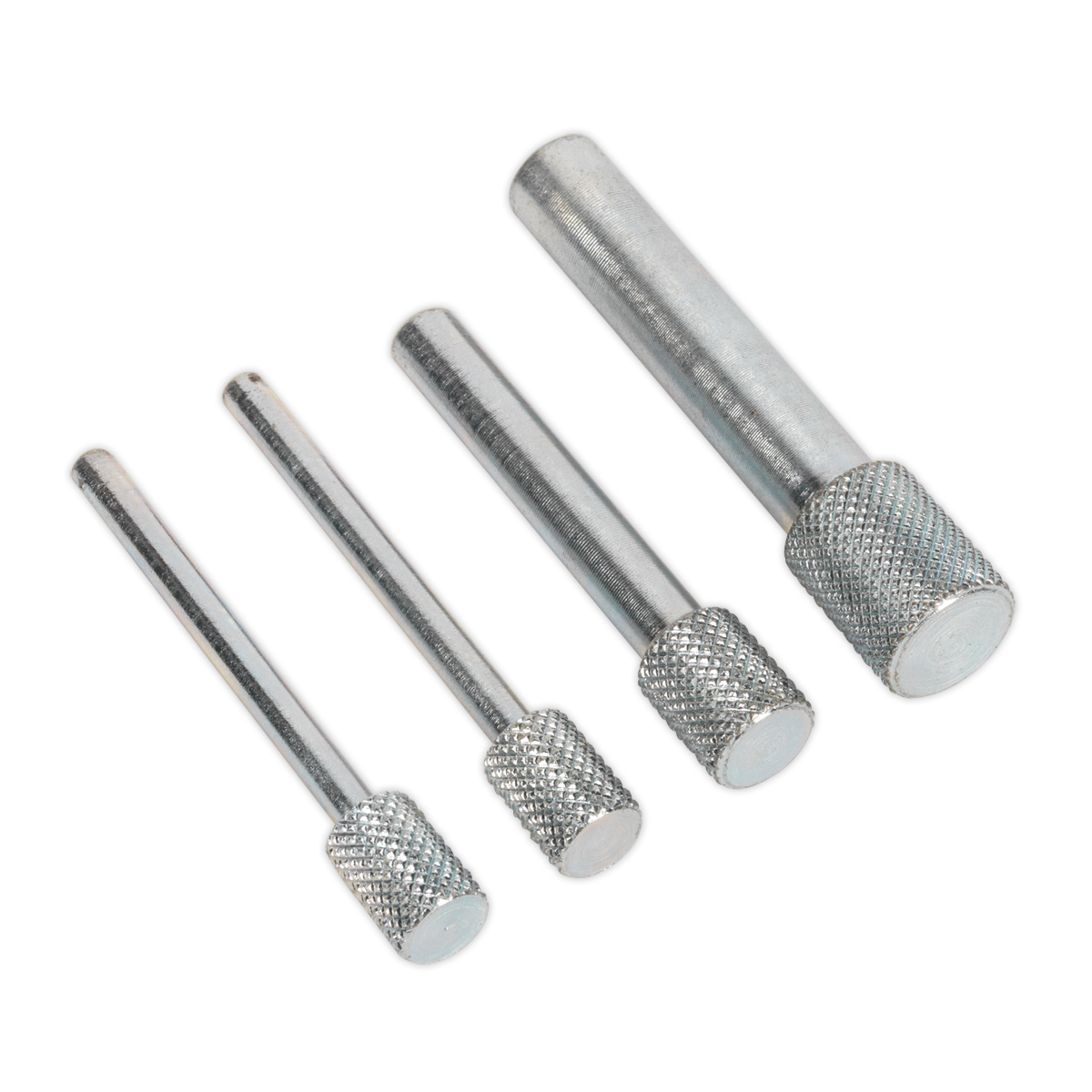

    Description: Set of locking pins for timing belt replacement on Ford 1.5, PSA 1.4 (DV4) and 1.6 (DV6) diesel engines fitted in Citroen, Peugeot, Ford, Mazda, Suzuki, Toyota and Volvo models. These timing pins lock and hold the camshaft, crankshaft, flywheel and HP pump in the timed position.
    Specification:
    • Set of locking pins for timing belt replacement on Ford 1.5, PSA 1.4 (DV4) and 1.6 (DV6) diesel engines fitted in Citroen, Peugeot, Ford, Mazda, Suzuki, Toyota and Volvo models.
    • These timing pins lock and hold the camshaft, crankshaft, flywheel and HP pump in the timed position.
    • Model No. VSE5846
    • Set of locking pins for timing belt replacement on Ford 1.5, PSA 1.4 (DV4) and 1.6 (DV6) diesel engines fitted in Citroen, Peugeot, Ford, Mazda, Suzuki, Toyota and Volvo models._x005F_x005F_x005F_x000D_
    • These timing pins lock and hold the camshaft, crankshaft, flywheel and HP pump in the timed position.
    Weight in KG: 0.158
    EAN: 5051747473430
    Warranty: 1 year

    Description:

  • Set of locking pins for timing belt replacement on Ford 1.5, PSA 1.4 (DV4) and 1.6 (DV6) diesel engines fitted in Citroen, Peugeot, Ford, Mazda, Suzuki, Toyota and Volvo models.
  • These timing pins lock and hold the camshaft, crankshaft, flywheel and HP pump in the timed position.

    • Technical Specifications:

    Model No VSE5846
    Applications:
    Citroen: Berlingo I/II (05-11), Berlingo III (08-18), Berlingo IV (14-19), C1 (05-10), C2 (03-10), C3 I/II (02-10), C3 III (10-18), C III IV (16-18), C3 Picasso (09-12), C3 Pluriel (04-10), DS3 (09-12), C4 (04-11), C4 II (11-18), C4 Picasso/Grand Picasso (06-18), C5 II (04-08), C5 III (07-12), DS4 (11-12), Nemo (08-10), Xsara II (04-08), Xsara Picasso (04-10)
    Ford: B-Max (12-18), C-Max (07-15), EcoSport (13-18), Fiesta (02-20), Focus (04-18), Focus C-Max (03-18), Fusion (04-11), Grand C-Max (10-18), Tourneo Courier (14-16)
    Mazda: 2 (02-10), 3 (04-12), 5 (10-12)
    Peugeot: 107 (05-10), 1007 (05-10), 206 (01-12), 206+ (10-13), 206CC (05-07), 207 (06-13), 207CC (07-15), 208 (12-18), 2008 (12-17), 307 (01-08), 308 (07-18), 308CC (09-17), 3008 (09-18), 407 (04-11), 4008 (12-15), 508 (11-18), 5008 (09-18), Bipper (08-10), Expert (10-12), Partner I/II (05-11), Partner III (08-18), Rifter (18-19). Traveller (16-20)
    Suzuki: Liana (04-08), SX4 (07-11)
    Toyota: Aygo (05-10)
    Volvo: C30 (06-13), S40 (04-12), S60 (11-15), S80 (09-15), V40 (12-15), V50 (04-12), V60 (11-15), V70 (11-15)
    Brand: Sealey
    Engine Codes:
    1.4D: F6JA, F6JB
    1.4D D-4D: ZWZ-TV
    1.4D DDiS: (DV4)8HY
    1.4D HDi: DV4C(8HR), DV4TD(8HT), DV4TD(8HW), DV4TD(8HX), DV4TD(8HZ), DV4TED(8HS), DV4TED4(8HX), DV4TED4(8HY), DVTED4(8HV)
    1.4D TDCi: F6JA, F6JB, F6JC, F6JD, KVJA
    1.5D TDCi: ENUG, UGCA, UGJC, XUJA, XUJB, XUJC, XUJF, XUJG, XUJH, XUJK, XUJL, XUJN, XUJM, XWDA, XWDB, XWDC, XWDD, XWDE, XWJB, XWJC, XXDA, XXDB, XXDC, XXDD
    1.6D: Y6, MZ-CD(Y6)
    1.6D DDiS: DV6(9HX)
    1.6D eDrive: D4162T, D4164T
    1.6D eHDi: DV6C(9HR), DV6FC(BHW), DV6FC(BHX), DV6FC(BHY), DV6FC(BHZ), DV6FDU(BHV), DV6FCU(BHX), DV6FDU(BHS)
    1.6D HDi: DV6(9HR), DV6ATED(9HX), DV6ATED(9HY), DV6ATED4(9HX), DV6AUTED4(9HX), DV6BTED4(9HT), DV6BTED4(9HW), DV6BUTED4(9HT), DV6C(9HL), DV6C(9HR), DV6C9(HR), DV6CATED(9HX), DV6D(9HP), DV6DTED(9HJ), DV6DTED(9HP), DV6ETED(9HN), DV6DTED(9HF), DV6FD (BHY), DV6FE (BHW), DV6TED(9HP), DV6TED4(9HV), DV6TED4(9HW), DV6TED4(9HX), DV6TED4(9HY), DV6TED4(9HZ), DV6TED4B, DV6TED4B(9HV), DV6TED4BU(9HS), DV6UTED4(9HU), DV6UTED4(9HX), DVTED4(9HV)
    1.6D TDCi: G8DA, G8DB, G8DD, G8DE, G8DF, GPDA, GPDC, HHDA, HHDB, HHJA, HHJB, HHJC, HHJD, HHJE, HHJF, MTDA, NGDA, T1DA, T1DB, T3DA, T3DB, T3JA, T3JB, TZJA, TZJB, UBJA
    1.6D TDCI ECOnetic: G8DD, GPDA, HHJD, TZJA, TZJB
    2.0D HDi: DW10FC(AHH), DW10FD(AHX)
    Nett Weight: 0.15kg
    OEM Tools:
    Flywheel Locking Pin (VSE5846.01): 303-734 (21-262) (Ford), 49JE02-020 (Mazda), 0194-C (PSA), 09910-05410 (Suzuki), 999-7169 (Volvo)
    Camshaft/HP Fuel Pump Locking Pins (VSE5846.02): 11-0-790 (BMW), 303-735 (212-263) (Ford), 49JE02-021 (Mazda), 0194-B (PSA), 09910-05410 Suzuki, 999-7122 (Volvo)
    Crankshaft Locking Pin (VSE5846.03): 11-0-300 (BMW), 303-732 (21-260) (Ford), 49JE02-018 (Mazda), 0194-A (PSA), 09910-05410 (Suzuki), 999-7121 (Volvo)
  • Warranty: 12 months

- Free UK Delivery (3 - 5 working days)

- 14-day returns available

- Full manufacturer warranty

Barcode: 5051747473430
